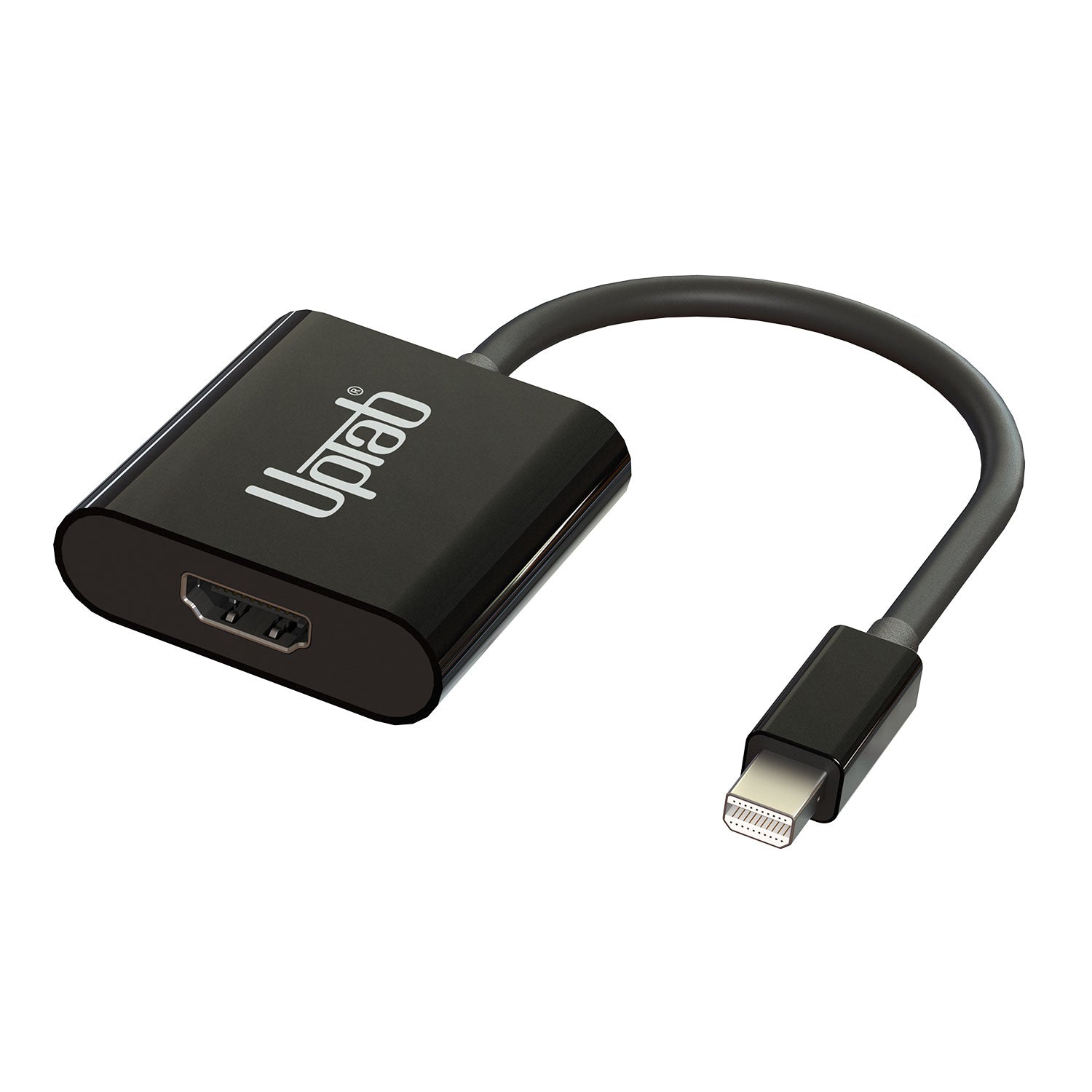

Mini DisplayPort 1.2 to HDMI 2.0a Active Adapter

The UPTab Mini DisplayPort™ 1.2 to HDMI™ 2.0a Active Adapter enables your Mini DisplayPort-supported computer to connect to an HDMI UltraHD display. This adapter is ideal for those engaged in high-level computing, gaming, and graphics by providing the highest performance available. With HDMI™ 2.0a throughput up to 18Gbps, the Mini DisplayPort 1.2 to HDMI 2.0a adapter is ideal for when 4K video combined with a smooth, 60Hz frame rate is desired.

Connect the Mini DisplayPort end of the connector to your computer and plug your existing HDMI cable from the display into the adapter. The adapter converts the Mini DisplayPort video signal into an HDMI signal at up to UHD 4K 4096x2160@60Hz. With support of the 4:4:4 color format, the adapter will enable true RGB color without the visual color degradation that occurs in other color formats that use subsampling. When audio is desired, the Mini DisplayPort adapter will also transmit up to 8 channel audio for an immersive audio and video experience.

• HDMI™ 2.0a data rates to 18Gbps, Mini DisplayPort™ 1.2 and 1.3 to 5.4Gbps/lane
• Supports display resolution up to 4096 x 2160 at 60Hz frame rate with 24-bit color
• Includes on-chip microprocessor with internal SPI ROM
• Supports RGB up to 12 bpc, YCbCr 4:4:4, 4:2:2 and 4:2:0 up to 12 bpc
• Supports content protection formats HDCP 1.4 and HDCP 2.2
• HDCP 1.4 and HDCP 2.2 repeater function with on-chip keys
• Supports TMDS scrambling for EMI/RFI reduction
• Supports SCDC (Status and Control Data Channel)
• Audio support up to 8 channels LPCM
• Self-powered, no external power required
• Premium chip: PS175
• Multi-shielded cable
• Aluminum Shell

Specifications:

• Input: Mini DisplayPort™ Male or Thunderbolt
• Ideal accessory for Apple iMac, MacBook Pro or Mac Pro
• Output: HDMI Female; An HDMI™ cable (sold separately) is required
• Can only convert signal from Mini DisplayPort to HDMI. This is not a bi-directional adapter

Warranty:

• 1 Year
